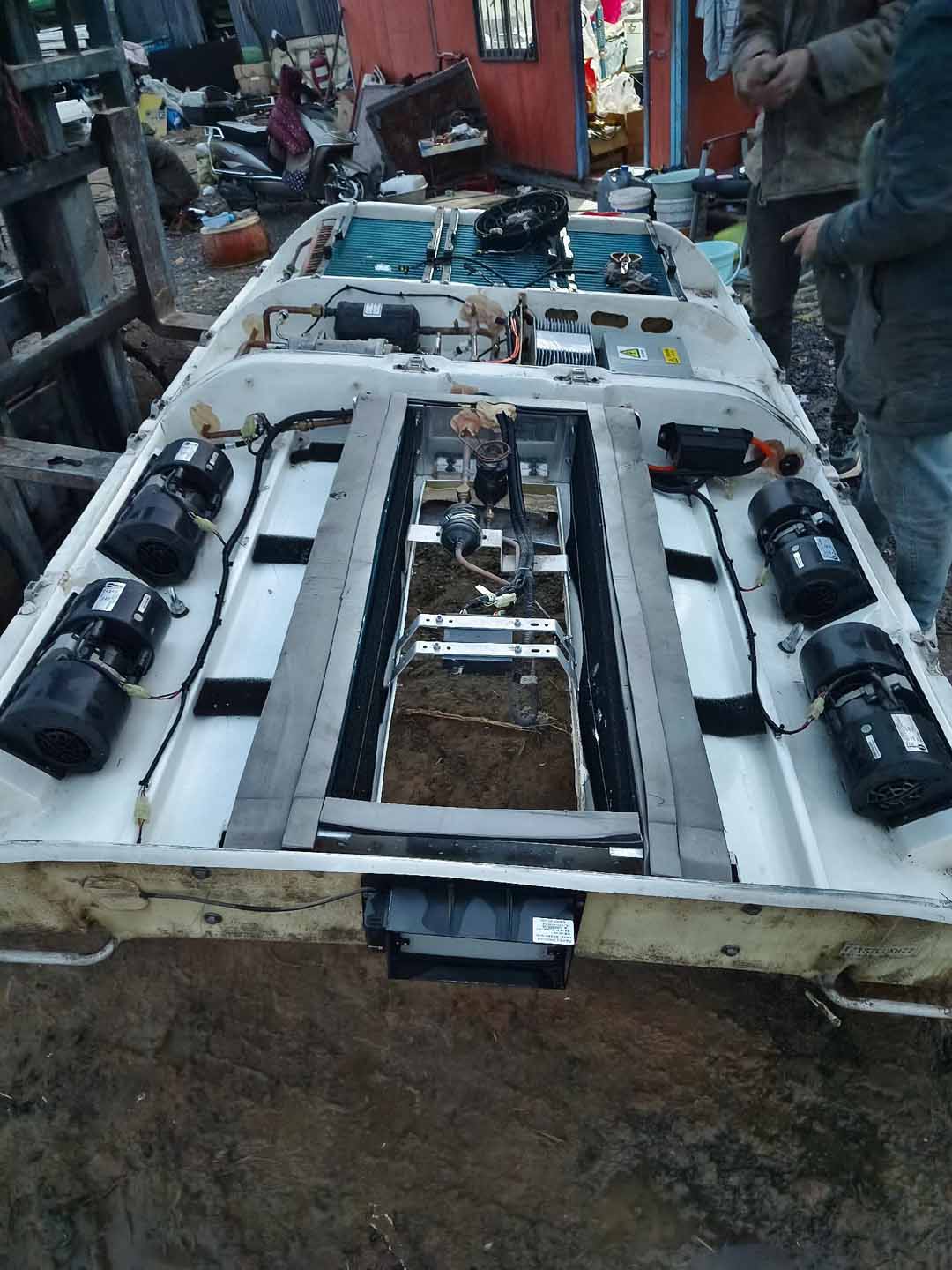

IKD bus air conditioner is crucial to travel comfort and passenger health. It consists of multiple components, such as a compressor and condenser, each performing a different function.
Its operating principle is based on a cooling or heating cycle and can be categorized by drive mode and function.
In addition, daily inspections and regular maintenance are essential to maintaining the proper operation of the air conditioning system. This includes checking the control panel, air flow and temperature before departure, and regularly cleaning components such as the condenser and evaporator. Basic Components of an IKD Bus Air Conditioner (I) Compressor
The compressor is a core component of a tourist bus's air conditioning system. Its primary function is to compress low-temperature, low-pressure gaseous refrigerant into high-temperature, high-pressure gaseous refrigerant. This process is like injecting energy into the refrigerant, giving it sufficient pressure and heat for subsequent heat exchange. The performance of the compressor is directly related to the cooling efficiency of the air conditioning system. If the compressor malfunctions, such as a decrease in compression capacity, the cooling effect of the entire air conditioning system will be significantly reduced. Common compressor types include piston compressors and scroll compressors. Piston compressors have a relatively simple structure and are relatively low-cost, making them suitable for some older tour bus models. Scroll compressors, on the other hand, offer higher efficiency and lower noise levels and are a more common type of compressor in modern tour bus air conditioning systems.
(II) Condenser
The condenser is located near the front or side radiator grille of a tour bus. After the high-temperature, high-pressure gaseous refrigerant from the compressor enters the condenser, it dissipates heat through heat exchange with the outside air, condensing the gaseous refrigerant into a liquid. The condenser's heat dissipation is crucial to the proper operation of the air conditioning system. If the condenser surface is clogged with dust, debris, or other debris, its heat dissipation capacity will be compromised, preventing the refrigerant from condensing effectively and, in turn, affecting the cooling performance of the entire air conditioning system. Therefore, regular cleaning and maintenance of the condenser is essential to ensure the proper operation of the tour bus air conditioning system.
(III) Evaporator
The evaporator is a key component in the air conditioning system that provides cooling. After the liquid refrigerant passes through a throttling device and is reduced in pressure, it enters the evaporator, where it rapidly evaporates, absorbing heat from the surrounding air, thereby lowering the air temperature. The evaporator is typically installed in the vehicle's air duct, where a fan blows cool air into the cabin. Factors such as the evaporator's surface area and piping design affect its cooling efficiency. Severe frost on the evaporator can hinder air flow and heat exchange, reducing cooling efficiency, so regular inspection and maintenance are necessary.
(IV) Expansion Valve (Throttling Device)
The expansion valve plays a throttling and pressure-reducing role in tour Bus Air Conditioner. It precisely controls the flow of liquid refrigerant, reducing its pressure and temperature before it enters the evaporator. This ensures that the refrigerant evaporates fully in the evaporator, achieving optimal cooling efficiency. Different types of expansion valves operate differently. For example, a thermal expansion valve automatically adjusts the refrigerant flow based on the temperature and pressure at the evaporator outlet, while an electronic expansion valve can more precisely control the flow based on the air conditioning system's needs. It is a more advanced throttling device and is commonly used in the air conditioning systems of some high-end tour buses.
(V) Refrigerant
The refrigerant is the medium that transfers heat in tour bus air conditioning systems. Common refrigerants include R134a. Refrigerant circulates through the various components of the air conditioning system, continuously absorbing and releasing heat, thereby achieving cooling or heating. Choosing the right refrigerant is crucial, considering both its cooling performance and its environmental impact. For example, some early refrigerants have been phased out due to their ozone-depleting effects, while refrigerants such as R134a, now widely used, are relatively environmentally friendly. Furthermore, the refrigerant charge must be strictly controlled according to regulations. Overcharging or undercharging can affect the proper functioning of the air conditioning system.
(VI) Control System
The control system of a tour bus air conditioning system coordinates the operation of various components to meet the required temperature within the vehicle. It includes temperature sensors, a control panel, and a controller. The temperature sensor monitors the vehicle's temperature in real time and transmits feedback to the controller. The control panel is the interface between the driver and passengers and the air conditioning system, allowing them to set parameters such as temperature, fan speed, and mode. The controller controls components such as the compressor, fan, and expansion valve based on feedback from the temperature sensor and control panel settings. For example, when the temperature inside the car is higher than the set temperature, the controller will start the compressor and adjust the opening of the expansion valve to increase the cooling capacity; when the temperature inside the car approaches or reaches the set temperature, the working status of each component will be adjusted accordingly to maintain a stable temperature.
