KingClima320 for 8-10m bus

32KW cooling capacity, rooftop mounted
Double return air systems ,small size and light weight
LFT and SMC environment-friendly materials
Product Description

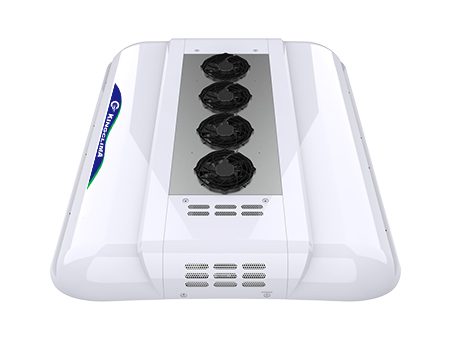

KingClima320 Model of Roof Mounted Air Conditioner for Bus
KingClima320 is direct engine driven bus air conditioners, 32KW cooling capacity, equipped with Valeo,Bock ,Bitzer original compressors, and application of 8-9 meter city buses or 8-10 Meter Coach buses.

KingClima320 is direct engine driven bus air conditioners, 32KW cooling capacity, equipped with Bitzer F600 original compressors, and application of 8-9 meter city buses or 8-10 Meter Coach buses.
★ 32KW cooling capacity, rooftop mounted;
★ Double return air systems, fast cooling speed and best cooling performance;
★ Can be working in the ambient temperature is 58℃;
★ V type micro-channel heat exchanger optional, heat exchange surface increased 20% and cooling capacity 15% more.
★ Very small in size, beautiful appearance and light weight.
★ Compact design: 20% reduction in weight, heat exchange efficiency is improved by 20%, refrigerant charged 50% less;
★ Especially applied for BRT buses, Hybrid buses, CNG or LNG buses, coach or city buses that the rooftop have a small space;
★ LFT-D structure: ultralight, consistent, recyclable and rigid;
★Rubber and thermal insulation materials: environmentally friendly, antiseptic, odourless and flame-retardant(A-0);
★ Patented CAN control: modular design, digital communication; PWM control module, evaporator fan stepless speed regulation; smart condenser fan control, cooling on demand.

Technical of KingClima320 Bus Air Conditioning Systems
Model KingClima320
Cooling Capacity 32KW / 110000BTU / 27500Kcal/h
Heating Capacity Optional
Fresh Air 1000m³/h
Refrigerant R134a/5.0KG
Compressor Model TM-43/BOCK 470/BitzerF400,4TFCY
  Displacement 430cc / 470cc / 400cc,465cc
  Weight 23kg/ 33kg / 35KG
  Oil Type PAG100/ BSE55/ BSE55
Evaporator Type Hydrophilic aluminum foil with internal ridge copper tube
  Air Flow 4400m³/h
  Blower Type 4-speed centrifugal type
  No. of Blower 4 pcs
  Current 36A
Condenser Type Micro channel heat exchanger core
  Air Flow 7600m³/h
  Fan Type Axial type
  No. of Fan 4 pcs
  Current 36A
Total Current < 80A
Weight 131 KG
Dimension (L*W*H) mm 2361*1920*300
Application 8-10 Meter City Bus & Coach
